Load 3D Sample

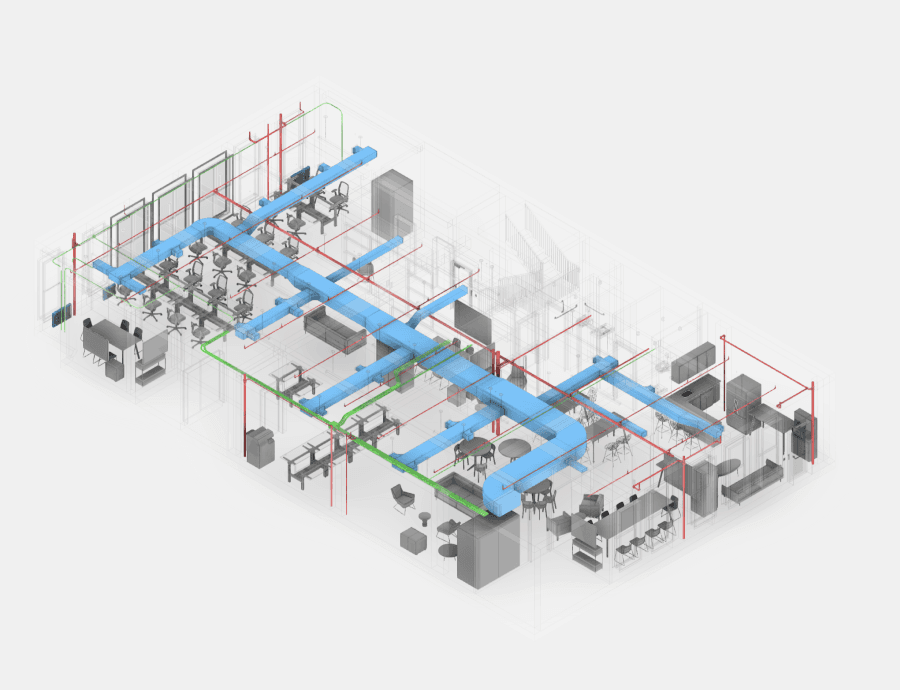

BIMIT Sample Project

BIMIT Sample

Download our test project deliverables

.RVT
Autodesk Revit 2020 Project
.RCS
Point Cloud
.DWG
Floor Plan CAD
.DWG
Reflected Ceiling Plan (RCP)

Frequently Asked Questions

What is BIMIT?

BIMIT is a service that allows you to drag-and-drop your registered point cloud and order a building information model (BIM)—in hours, not weeks or months.

Who is BIMIT for?

BIMIT is for people who have a registered point cloud and are looking to convert that into an accurate building information model (BIM) and/or floor plans.

Why does BIMIT matter?

Now, any architect, engineer, reality capture specialist, or simply anyone with a 3D scan app on their phone can drag-and-drop their registered point cloud file—and kick-off the ordering process to get your LOD 200 BIM in Revit and CAD formats.

What files does BIMIT include?

All BIMIT orders include the following file types by default: RVT 2020, DWG, RCS

  • .RVT (Revit 2020 Project) Existing conditions
  • .RCS (Point Cloud)
  • .DWG Floor Plan CAD
  • .DWG Reflected Ceiling Plan (RCP)

What's BIMIT processing times?

The BIMIT File is expected to consistently achieve the following production processing times (in hours). These hourly ranges start upon the time of receipt of the registered point cloud.

Tier 1 (1-1000 Square feet) - 48 - 72 Hours

Tier 2 (1K - 5K Square feet) - 72 - 96 Hours

Tier 3 (5K - 10K Square feet) - 72 - 120 Hours

Tier 4 (10K - 25K Square feet) - 96 - 120 Hours

Tier 5 (25K - 50K Square feet) - 120 - 240 Hours

Tier 6 (50K - 75K Square feet) - 168 - 264 Hours

Tier 7 (75K - 100K Square feet) - 192 - 312 Hours

How will I receive my final deliverable?

Final deliverables will be delivered via email to the email address input during payment.

Can I request Scopes other than architecture, MEP, and Furniture?

Architecture is a required scope. Optional scopes are MEP (Mechanical, electrical, plumbing) and Furniture

Want to see what are you getting modeled? See Attached Product Level of Development Document

How do I modify an order that I’ve already submitted?

In case you need to modify your order you can send us an email to

bimit-support@integratedprojects.co

Note: You can cancel your order within 1-Hour to get a Full Refund

Is the architecture scope always required?

Yes

I submitted incorrect information, how can I modify that?

-

How do I place an order?

Enter BIMIT order page. Upload cloud. Select scopes if applicable. Enter estimated square footage. Proceed to payment for deposit. You will receive an order confirmation email.

What data points will the BIMIT file provide me with?

In the final deliverables you will find a .zip format with:

  • .RVT (Revit 2020 Project) Existing conditions
  • .RCS (Point Cloud)
  • .DWG Floor Plan CAD
  • .DWG Reflected Ceiling Plan (RCP)

How accurate is the final product?

Bimit final deliverables rely on the accuracy of the point cloud generated from the scanning device, or any other camera used to create and accurately align the point cloud.

The BIM will mirror the accuracy of the point cloud

What is the largest file size I can submit?

We can Receive files of up to 5gb on our server, in case you have a bigger file you can copy and paste a Google Drive or Dropbbox link into our upload card.

Is it cheaper or faster if I only get CADs?

No. All BIMIT orders include a package set of files. We currently do not offer the ability to only order CADs without the BIM.

What point cloud file formats does BIMIT accept?

RCS, XYZ, E57, LAZ, PTS Are accepted File formats

What software is required to open files from BIMIT?

To open up a RVT 2020, you’ll need Autodesk Revit 2020 or higher.

After receiving my BIMIT, what other file formats can I export to?

See a full list of exportable files types from your BIM here.

Does BIMIT accept unregistered or raw point cloud scans?

No. All point cloud files must be registered and fully aligned before submitting for BIMIT.

What payment methods do you accept?

We Accept all major debit and credit cards from customers in every country

When will my card be charged?

You will be charged 50% of the total order once your order is placed, once your order is processed we will charge the remaining balance.

How long do I have to cancel an order?

We have established a one-hour cancellation frame once the order is placed.

If your order is cancelled within the cancellation time you will receive a full refund.

How do I cancel my order?

-

Is my deposit refundable?

If your order is cancelled within the (1) hour cancellation window, we will refund your full deposit to the bank account provided when the order was submitted.

In case you need any help, contact us at bimit-support@integratedprojects.co

How long will a refund take to clear?

Bimit submits refunds to your bank immediately. Depending on the bank's processing time, it can take anywhere from 5-10 business days to show up on your end.

Point Cloud

A point Cloud is a set of data points in space. The points may represent a 3D shape or object. Each point position has its set of Cartesian coordinates (X, Y, Z).[1] Point clouds are generally produced by 3D scanners or by photogrammetry software, which measure many points on the external surfaces of objects around them.

CAD

The term computer aided design (CAD) refers to the use of computers to create graphical representations of physical objects to assist in the design process. It can also refer to the use of computers to prepare presentational images or to prepare production information enabling objects to be manufactured, although sometimes this is referred to as computer aided drafting as it does not necessarily involve designing. In combination, these processes may be referred to as computer-aided design and drafting (CADD).

CAD can be used to create 2D or 3D representations, and can also be used to generate animations and other presentational material. It may allow the addition of supplementary information such as dimensions, descriptions of components, references to specifications and so on.

BIM

Building information modeling (BIM) is a process supported by various tools, technologies and contracts involving the generation and management of digital representations of physical and functional characteristics of places. Building information models (BIMs) are computer files (often but not always in proprietary formats and containing proprietary data) which can be extracted, exchanged or networked to support decision-making regarding a built asset.
